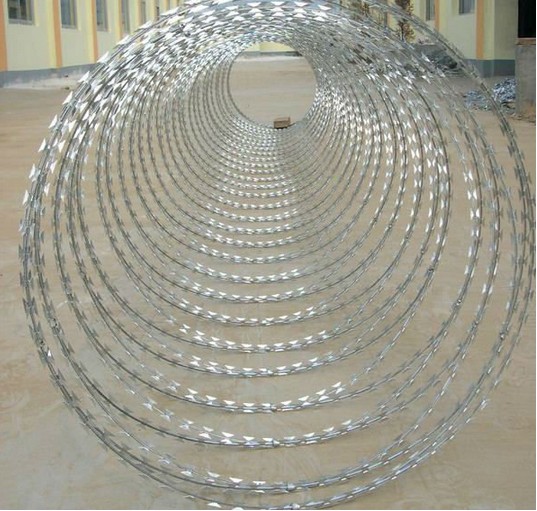

Concertina barbed wire

1.Material:
a.Core wire material: galvanized wire and stainless steel wire.
b.Blade material: galvanized sheet and stainless steel sheet.
2. Specification:
1>Razor thickness:0.5mm,0.6mm
2>.Wire diameter:2.2mm,2.5mm,3.0mm
3>Razor width : 15 mm
4>Razor length: 22 mm
5>barb spacing: 26mm
6>Outside diameter of roll: can be :450mm,500mm,600mm,
730mm,900mm,1meter,
or as customers' specific request.
7>Number of loops:33--102
8>Standard spreading length per roll:8m --16m
9>Razor barbed type : cross type
10>Packing : compression rolls,water-proof paper inside, woven bag outside or in carton
11>Surface treatment: Galvanized or PVC coated
3.Features: razor barbed wire is also named Tape Wire, Razor Tape Wire, Barbed Tape or Barbed Tape Wire. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire an d strip are galvanized to prevent corrosion.
4.Application:
Razor barbed wire is widely used by in military field, prisons, detention houses, government buildings and other national security facilities; it is also used as fence for cottage and society fence, and other private buildings

Galvanized Razor Barbed Wire Specification(mm)

Types

Thickness

Wire Dia.

Barb Length

Barb Width

Barb Spacing

BTO-10

0.5±0.05

2.5±0.1

10±1

13±1

26±1

BTO-12

0.5±0.05

2.5±0.1

12±1

15±1

26±1

BTO-18

0.5±0.05

2.5±0.1

18±1

15±1

33±1

BTO-22

0.5±0.05

2.5±0.1

22±1

15±1

34±1

BTO-28

0.5±0.05

2.5

28

15

45±1

BTO-30

0.5±0.05

2.5

30

18

45±1

CBT-60

0.6±0.05

2.5±0.1

60±2

32±1

100±2

CBT-65

0.6±0.05

2.5±0.1

65±2

21±1

100±2





Outside Diameter

No. of Loops

Standard Length per Coil

Type

Notes

450mm

33

8M

CBT-65

Single coil

500mm

41

10M

CBT-65

Single coil

700mm

41

10M

CBT-65

Single coil

960mm

53

13M

CBT-65

Single coil

500mm

102

16M

BTO-10.15.22

Cross type

600mm

86

14M

BTO-10.15.22

Cross type

700mm

72

12M

BTO-10.15.22

Cross type

800mm

64

10M

BTO-10.15.22

Cross type

960mm

52

9M

BTO-10.15.22

Cross type



Razor wire fence specification

Razor Wire Fence Size

Mesh Aperture

Razor blade

1.8mX3m

30X15 15X7.5

BTO-12 BTO-18 BTO-22 CBT-65

1.8mX6m

30X15 15X7.5

BTO-12 BTO-18 BTO-22 CBT-65

1.8mXm9

30X15 15X7.5

BTO-12 BTO-18 BTO-22 CBT-65

1.8mX12m

30X15 15X7.5

BTO-12 BTO-18 BTO-22 CBT-65

1.8mX15m

30X15 15X7.5

BTO-12 BTO-18 BTO-22 CBT-65
